Description

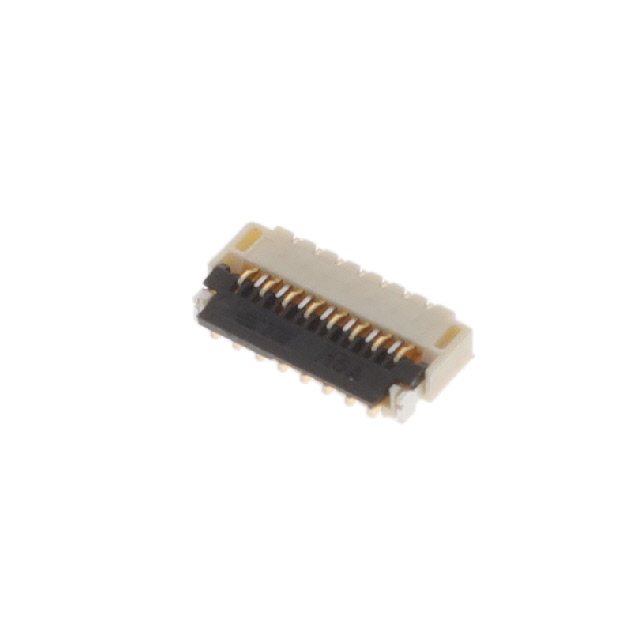

1-2328724-5 TE Connectivity AMP Connectors – FPC Connector 15 Position, 0.012″ (0.30mm) Pitch, 30V Surface Mount, Right Angle Solder Thermoplastic
Connector Flat Flex Type: FPC
Connector Contact Type: Contacts, Bottom
Number of Position: 15
Pitch: 0.012″ (0.30mm)
Termination: Solder
FFC, FCB Thickness: 0.20mm
Height Above Board: 0.039″ (1.00mm)
Cable End Type: Tapered
Contact Material: Copper Alloy
Contact Finish: Gold
Operating Temperature: -40°C ~ 85°C
Housing Material: Thermoplastic
Material Flammability Rating: UL94 V-0
Mounting Type: Surface Mount, Right Angle
Manufacturer: TE Connectivity
Manufacturer Part #: 1-2328724-5
