Description

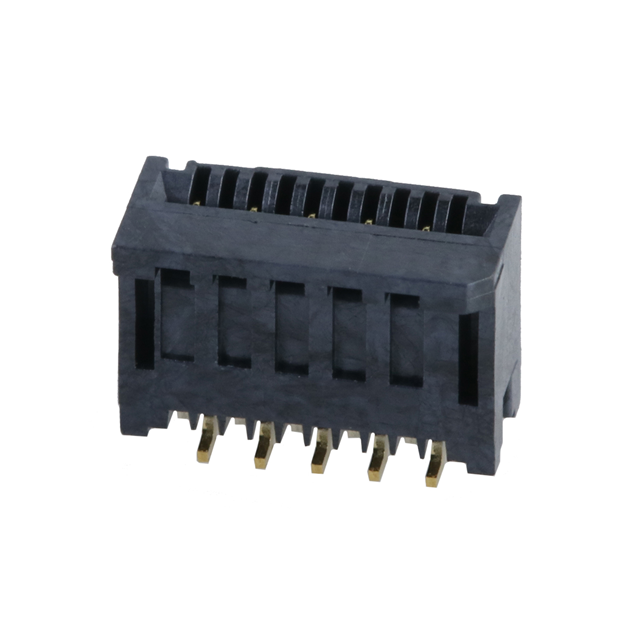

0781191020 Molex Easy-On 78119 FFC, FPC Connector 10 Position, 0.020″ (0.50mm) Pitch, 50V Surface Mount Solder
Connector Flat Flex Type: FFC, FPC
Connector Contact Type: Contacts, Vertical – 1 Sided
Number of Position: 10
Pitch: 0.020″ (0.50mm)
Termination: Solder
FFC, FCB Thickness: 0.30mm
Height Above Board: 0.161″ (4.10mm)
Cable End Type: Tapered
Contact Material: Phosphor Bronze
Contact Finish: Gold
Operating Temperature: -40°C ~ 85°C
Housing Material: Liquid Crystal Polymer (LCP), Glass Filled
Material Flammability Rating: UL94 V-0
Mounting Type: Surface Mount
Manufacturer: Molex
Manufacturer Part #: 0781191020
