Description

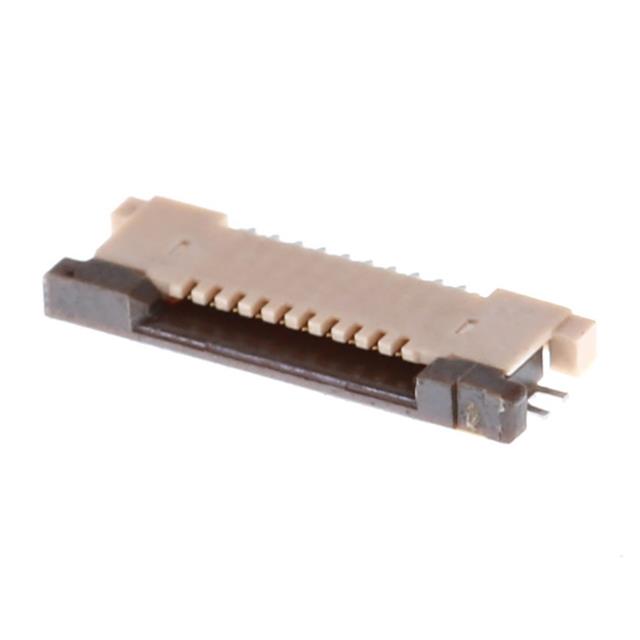

0545501072 Molex Easy-On 54550 FFC, FPC Connector 10 Position, 0.020″ (0.50mm) Pitch, 50V Solder Retention, Zero Insertion Force (ZIF) Surface Mount, Right Angle Solder Polyphenylene Sulfide (PPS)
Connector Flat Flex Type: FFC, FPC
Connector Contact Type: Contacts, Top
Number of Position: 10
Pitch: 0.020″ (0.50mm)
Termination: Solder
FFC, FCB Thickness: 0.30mm
Height Above Board: 0.047″ (1.20mm)
Cable End Type: Straight, Tapered
Contact Material: Phosphor Bronze
Contact Finish: Gold
Operating Temperature: -40°C ~ 85°C
Housing Material: Liquid Crystal Polymer (LCP)
Material Flammability Rating: UL94 V-0
Mounting Type: Surface Mount, Right Angle
Manufacturer: Molex
Manufacturer Part #: 0545501072
