Description

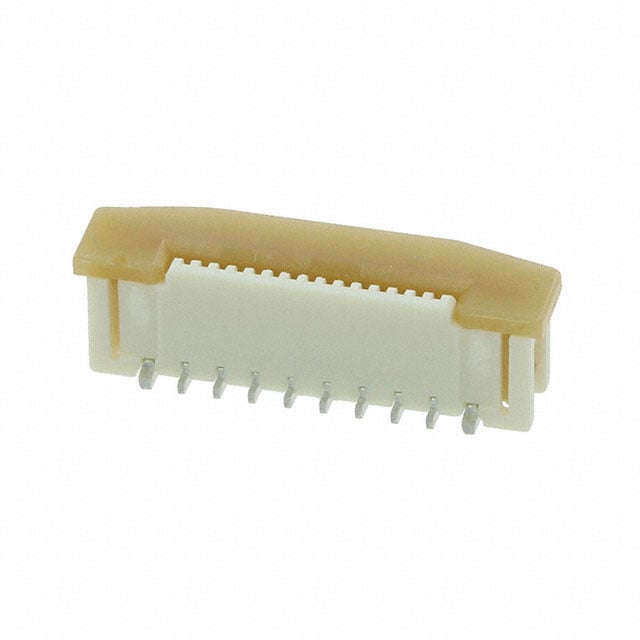

0525591552 Molex Easy-On 52559 FFC, FPC Connector 15 Position, 0.020″ (0.50mm) Pitch, 50V Zero Insertion Force (ZIF) Surface Mount Solder Polyphenylene Sulfide (PPS)
Connector Flat Flex Type: FFC, FPC
Connector Contact Type: Contacts, Vertical – 1 Sided
Number of Position: 15
Pitch: 0.020″ (0.50mm)
Termination: Solder
FFC, FCB Thickness: 0.30mm
Height Above Board: 0.154″ (3.90mm)
Cable End Type: Straight, Tapered
Contact Material: Phosphor Bronze
Contact Finish: Gold
Operating Temperature: -40°C ~ 85°C
Housing Material: Polyamide (PA46), Nylon 4/6
Material Flammability Rating: UL94 V-0
Mounting Type: Surface Mount
Manufacturer: Molex
Manufacturer Part #: 0525591552
