Description

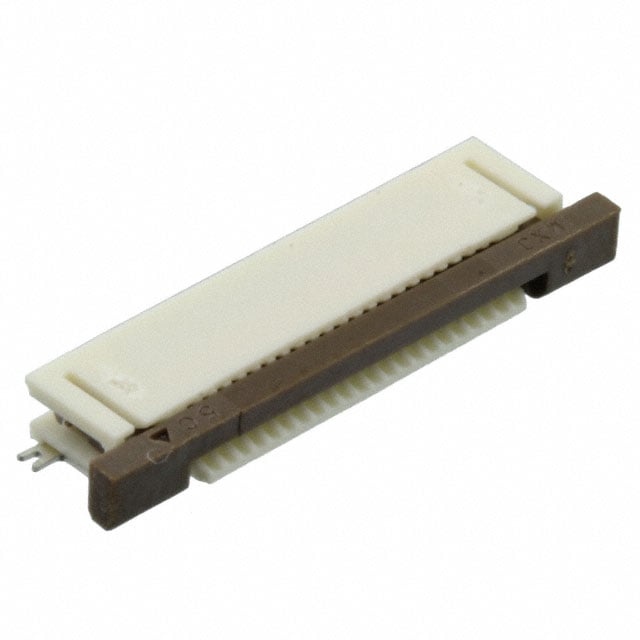

0524372271 Molex Easy-On 52437 FFC, FPC Connector 22 Position, 0.020″ (0.50mm) Pitch, 50V Solder Retention, Zero Insertion Force (ZIF) Surface Mount, Right Angle Solder Polyphenylene Sulfide (PPS), Glass Filled
Connector Flat Flex Type: FFC, FPC
Connector Contact Type: Contacts, Bottom
Number of Position: 22
Pitch: 0.020″ (0.50mm)
Termination: Solder
FFC, FCB Thickness: 0.30mm
Height Above Board: 0.079″ (2.00mm)
Cable End Type: Straight, Tapered
Contact Material: Phosphor Bronze
Contact Finish: Gold
Operating Temperature: -40°C ~ 85°C
Housing Material: Polyamide (PA46), Nylon 4/6, Glass Filled
Material Flammability Rating: UL94 V-0
Mounting Type: Surface Mount, Right Angle
Manufacturer: Molex
Manufacturer Part #: 0524372271
