Description

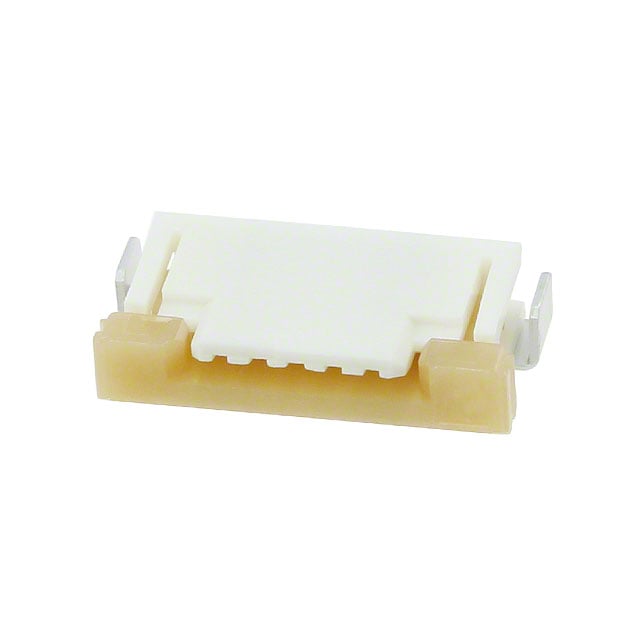

0522070560 Molex Easy-On 52207 FFC, FPC Connector 5 Position, 0.039″ (1.00mm) Pitch, 125V Solder Retention, Zero Insertion Force (ZIF) Surface Mount, Right Angle Solder Polyphenylene Sulfide (PPS)
Connector Flat Flex Type: FFC, FPC
Connector Contact Type: Contacts, Top
Number of Position: 5
Pitch: 0.039″ (1.00mm)
Termination: Solder
FFC, FCB Thickness: 0.30mm
Height Above Board: 0.106″ (2.70mm)
Cable End Type: Tapered
Contact Material: Phosphor Bronze
Contact Finish: Gold
Operating Temperature: -40°C ~ 85°C
Housing Material: Polyamide (PA46), Nylon 4/6
Material Flammability Rating: UL94 V-0
Mounting Type: Surface Mount, Right Angle
Manufacturer: Molex
Manufacturer Part #: 0522070560
