Description

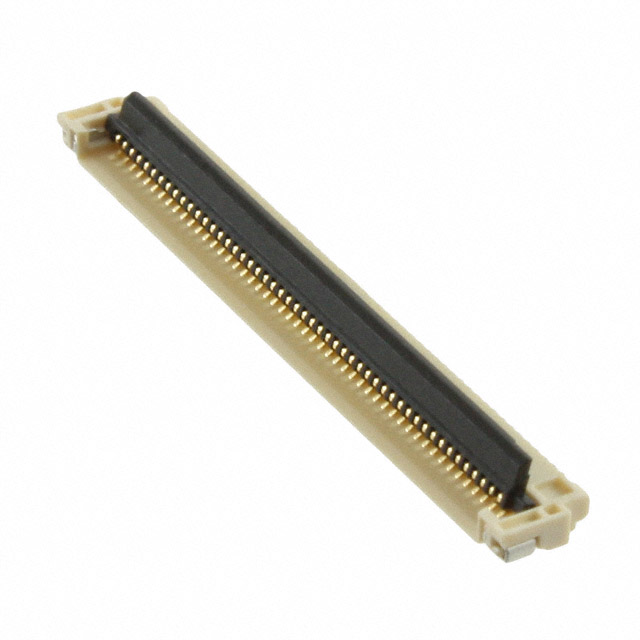

0512965094 Molex Easy-On 51296 FFC, FPC Connector 50 Position, 0.020″ (0.50mm) Pitch, 50V Solder Retention, Zero Insertion Force (ZIF) Surface Mount, Right Angle Solder Polyamide (PA9T), Nylon 9T, Glass Filled
Connector Flat Flex Type: FFC, FPC
Connector Contact Type: Contacts, Bottom
Number of Position: 50
Pitch: 0.020″ (0.50mm)
Termination: Solder
FFC, FCB Thickness: 0.30mm
Height Above Board: 0.051″ (1.30mm)
Cable End Type: Straight, Tapered
Contact Material: Phosphor Bronze
Contact Finish: Gold
Operating Temperature: -20°C ~ 85°C
Housing Material: Liquid Crystal Polymer (LCP), Glass Filled
Material Flammability Rating: UL94 V-0
Mounting Type: Surface Mount, Right Angle
Manufacturer: Molex
Manufacturer Part #: 0512965094
