Description

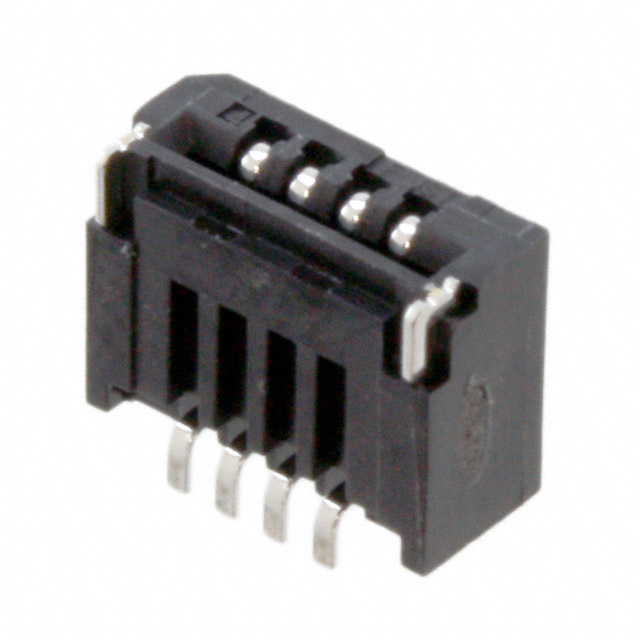

04FMN-SMT-A-TF JST Sales America Inc. FMN FFC Connector 4 Position, 0.039″ (1.00mm) Pitch, 50V Low Insertion Force (LIF) Surface Mount, Right Angle Solder
Connector Flat Flex Type: FFC
Connector Contact Type: Contacts, Top
Number of Position: 4
Pitch: 0.039″ (1.00mm)
Termination: Solder
FFC, FCB Thickness: 0.30mm
Height Above Board: 0.118″ (3.00mm)
Cable End Type: Straight
Contact Material: Phosphor Bronze
Contact Finish: Tin
Operating Temperature: -25°C ~ 85°C
Housing Material: Polyamide (PA6T), Nylon 6T
Material Flammability Rating: UL94 V-0
Mounting Type: Surface Mount, Right Angle
Manufacturer: JST
Manufacturer Part #: 04FMN-SMT-A-TF
