Description

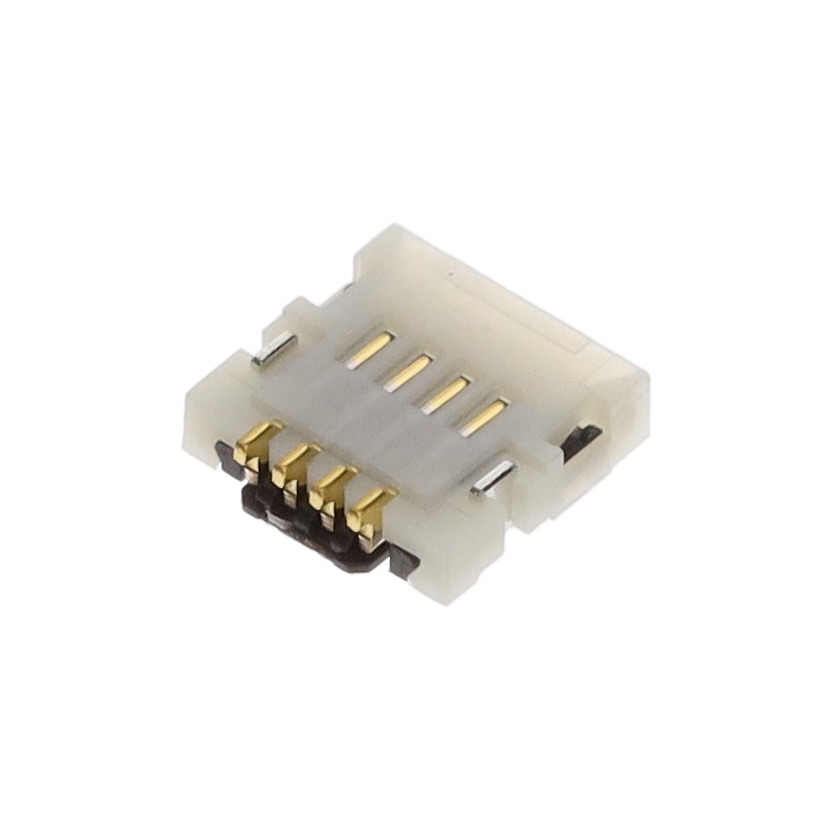

046277004001883+ KYOCERA AVX 6277, Kyocera FPC Connector 4 Position, 0.020″ (0.50mm) Pitch, 50V Zero Insertion Force (ZIF) Surface Mount, Right Angle Solder
Connector Flat Flex Type: FPC
Connector Contact Type: Contacts, Top and Bottom
Number of Position: 4
Pitch: 0.020″ (0.50mm)
Termination: Solder
FFC, FCB Thickness: 0.20mm
Height Above Board: 0.035″ (0.88mm)
Cable End Type: Notched
Contact Material: Copper Alloy
Contact Finish: Gold
Operating Temperature: -40°C ~ 85°C
Housing Material: Thermoplastic
Material Flammability Rating:
Mounting Type: Surface Mount, Right Angle
Manufacturer: AVX
Manufacturer Part #: 046277004001883+
