Description

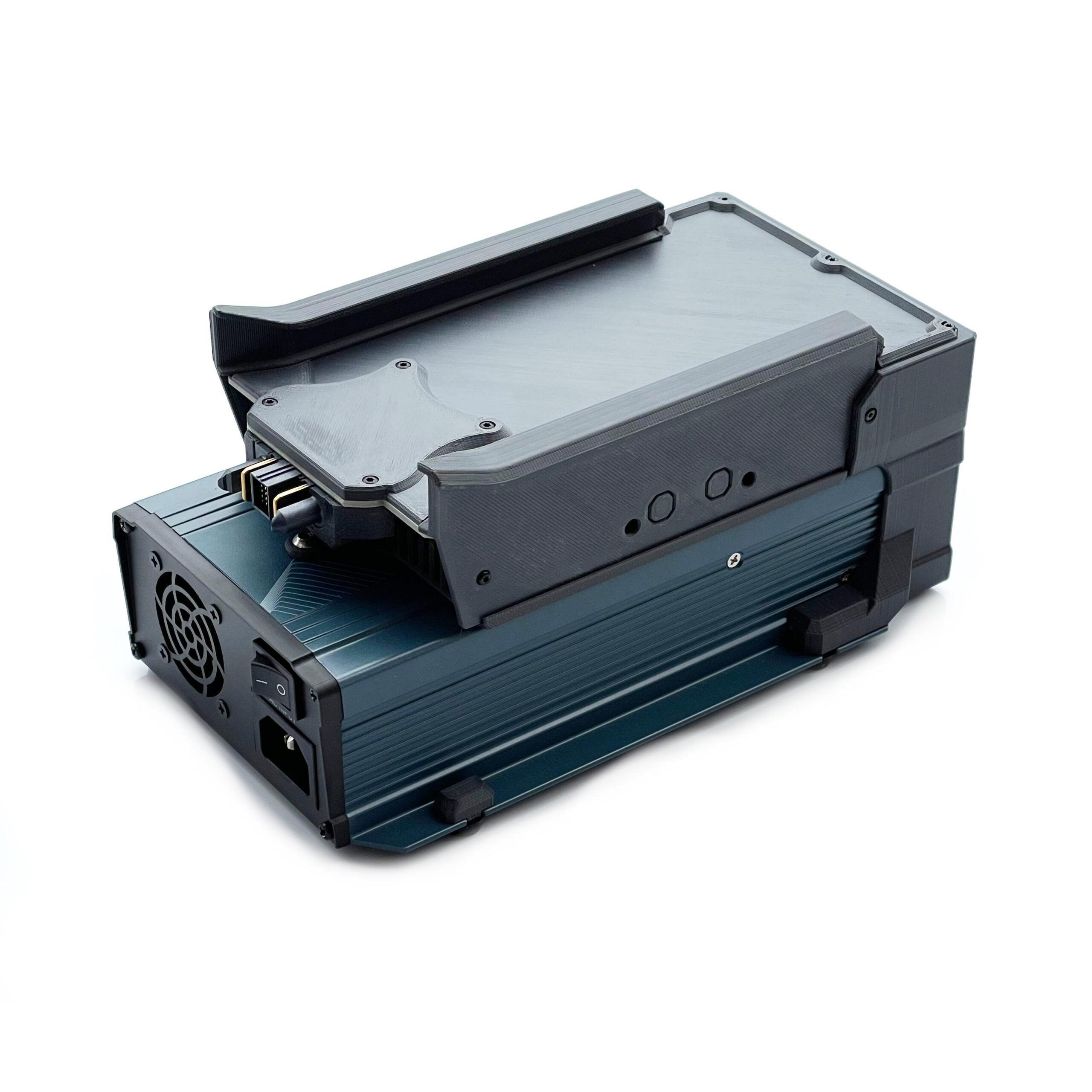

04270004048346 Aerotate Smart Charger aeroPAX6 – 450W or 450W 13.5A for Li Ion, Chassis Mount Rectangular Connector
The aeroPAX6 smart charger is a Lithium-Polymer smart charger for the aeroPAX6 smart
battery series. It is specifically designed for drone and other robotics operations.
It provides a suitable DC Voltage output for a 6S smart battery and limits the current based on
the communication with the Battery Management System of the aeroPAX6 smart battery.
• Power output is only enabled when a battery is inserted otherwise the charger
contacts are without power.
• Power Variants available: 450W – 13 A | 750W – 22A | 1200W – 36A
• 1200W Version also cools battery with air while charging
• End of charge detection
• Quick lock and release mechanism for the aeroPAX6 smart battery series
• Wifi option for data logging also available for all versions
Type: Charging Station
Input Voltage: 100V ~ 240V
Nominal Voltage: 24V, 20V ~ 25V
Charge Current Max: 13.5A
Power Max: 450W
Number of Cell: 6
Termination Style: Rectangular Connector
Mounting Type: Chassis Mount
