Description

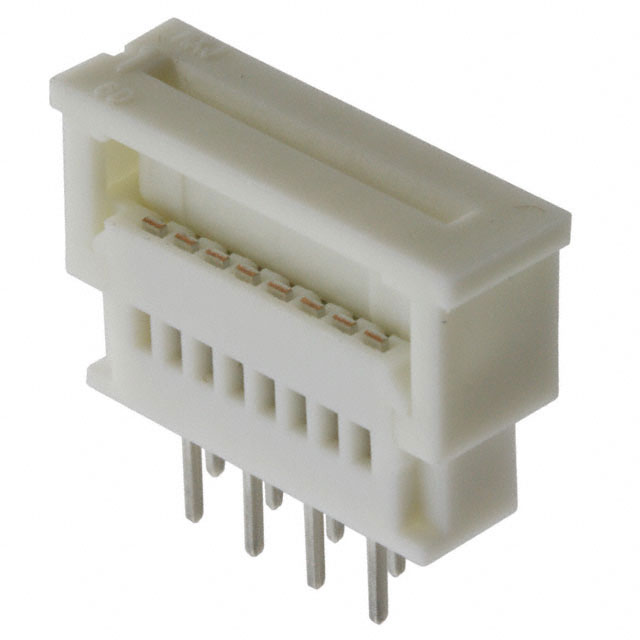

0039532085 Molex 5597 FFC, FPC Connector 8 Position, 0.049″ (1.25mm) Pitch, 200V Zero Insertion Force (ZIF) Through Hole Solder Polybutylene Terephthalate (PBT), Polyester
Connector Flat Flex Type: FFC, FPC
Connector Contact Type: Contacts, Vertical – 1 Sided
Number of Position: 8
Pitch: 0.049″ (1.25mm)
Termination: Solder
FFC, FCB Thickness: 0.30mm
Height Above Board: 0.295″ (7.50mm)
Cable End Type: Straight
Contact Material: Phosphor Bronze
Contact Finish: Tin Bismuth
Operating Temperature: -20°C ~ 80°C
Housing Material: Polybutylene Terephthalate (PBT), Polyester
Material Flammability Rating: UL94 V-0
Mounting Type: Through Hole
Manufacturer: Molex
Manufacturer Part #: 0039532085
